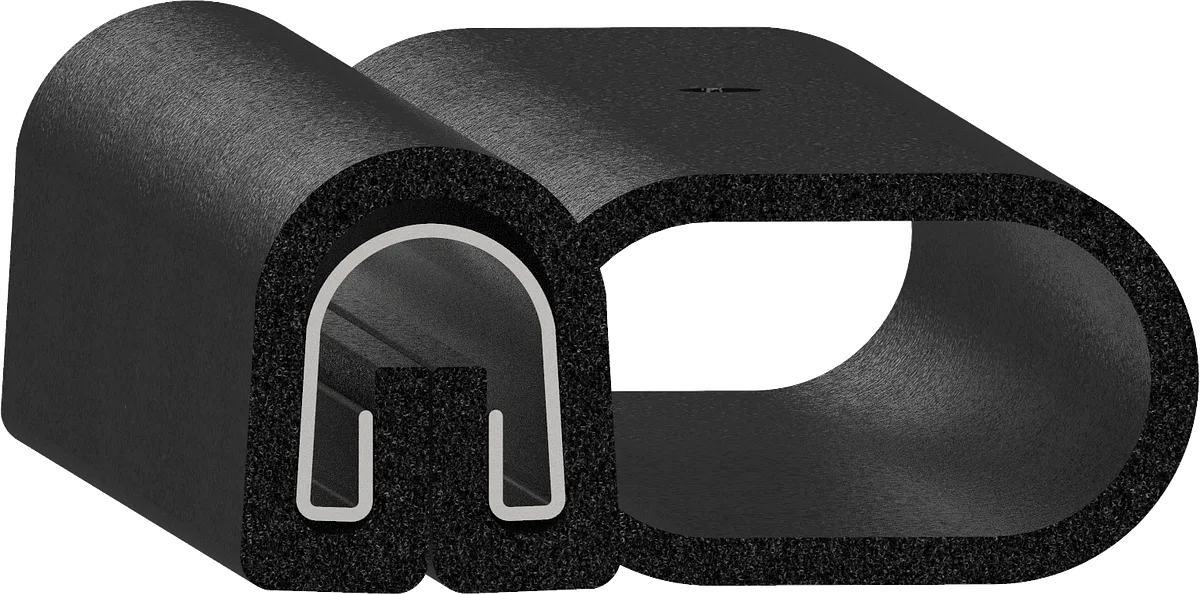

Seal catalog Cross-section drawing of SD-504
 Spec sheet (PDF)  Print spec sheet
Seal · Bulb Seals

SD-504

SD-504

Width
1.400"
Height
0.650"
Flange
0.125"
Material
Rubber
Part SD-504
Add to quote list Get a quote Compare

Counter or distributor? Wholesale & volume pricing.

Bulb Seals
Width
1.400"
Height
0.650"
Flange
0.125"
Material
Rubber
Type
Sponge
Durometer
2A2 (sponge grade)
Colour
Black
Mount
Push On
Bulb position
Side
Core
SD-487 Spring Steel
Industries
Agriculture Equipment and Heavy Trucks
Shape
Bulb Seal
Supplied lengths
50 ft and 250 ft

Interchangeable parts 9

The whole seal catalog →

Seals that substitute for this one, from our own interchange records. Have a competitor's number? Search it for the closest equivalent.

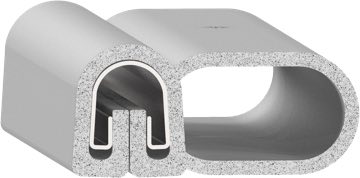

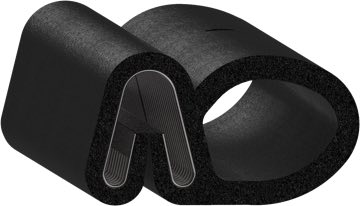

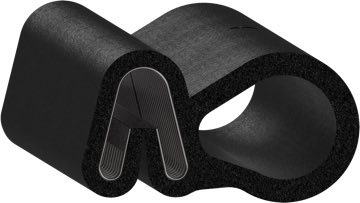

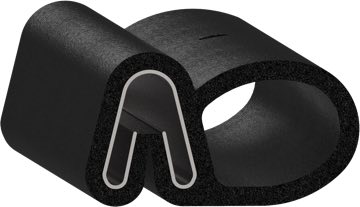

Cross-section of SD-503 SD-503 SD-503 1.200" × 0.650" Cross-section of SD-504-500L SD-504-500L SD-504 w/500L 1.465" × 0.775" Cross-section of SD-504-N SD-504-N SD-504-N 1.475" × 0.650" Cross-section of SD-504-W SD-504-W SD-504-W 1.400" × 0.650" Cross-section of SD-505 SD-505 SD-505 1.650" × 0.673" Cross-section of SD-506 SD-506 SD-506 1.860" × 0.650" Cross-section of SD-510 SD-510 SD-510 1.132" × 0.625" Cross-section of SD-510-Spradling SD-510-Spradling SD-510 Spradling 1.135" × 0.650" Cross-section of SD-515 SD-515 SD-515 4.400" × 0.650"
