Edge Trims

72 profiles matching · every one drawn and dimensioned

An edge trim is typically used for to cover an edge of fiberglass, steel or some other material in order to increase safety or aesthetics. They can be made from rubber or plastic and most of the time will have a steel or wire core to increase the ability for it to clamp onto the flange.

72 results · CSV
Featured Part number Width Height
Cards Table
Edge Trims Remove filter Reset all

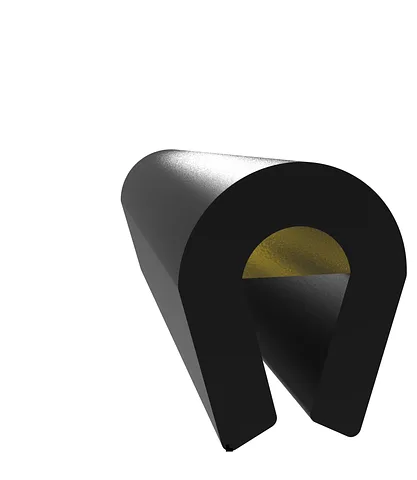

  1. 1420495000 Compare Cross-section of 1420495000
    1420495000 1420495000 0.230" W × 0.060" H PVC · Edge Trim

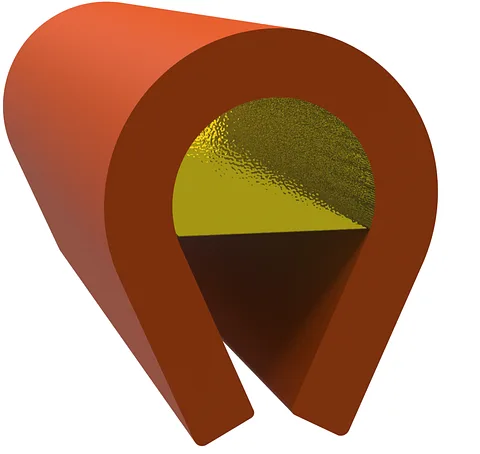

  2. 22-Orange Compare Cross-section of 22-Orange
    22-Orange 22-Orange 0.280" W × 0.340" H PVC · Edge Trim

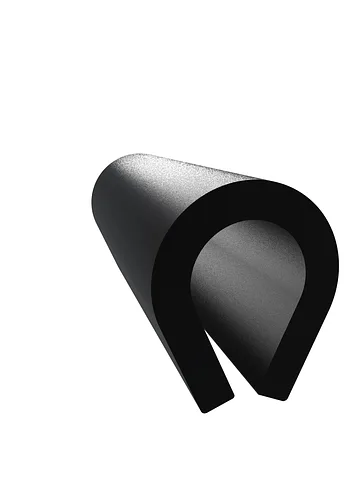

  3. 321583 Compare Cross-section of 321583
    321583 321583 0.340" W × 0.285" H PVC · Edge Trim

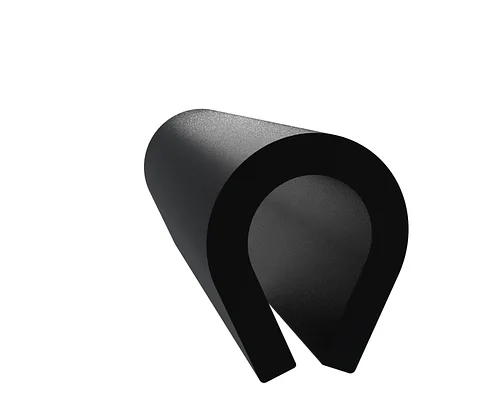

  4. 56684 Compare Cross-section of 56684
    56684 56684 0.340" W × 0.285" H PVC · Edge Trim

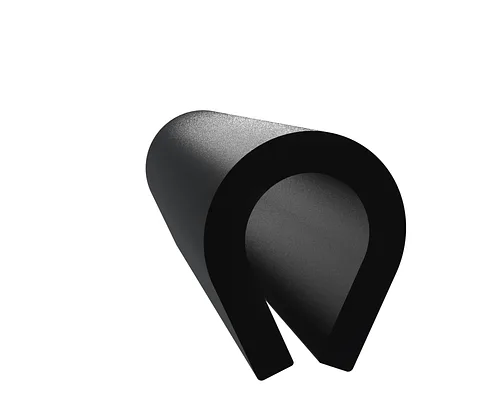

  5. 56690 Compare Cross-section of 56690
    56690 56690 0.285" W × 0.340" H PVC · Edge Trim

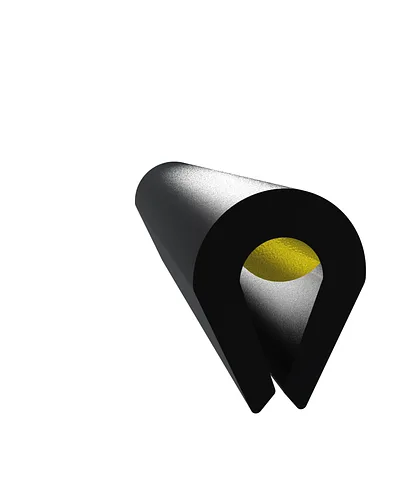

  6. 56807 Compare Cross-section of 56807
    56807 56807 0.187" W × 0.240" H PVC · Edge Trim

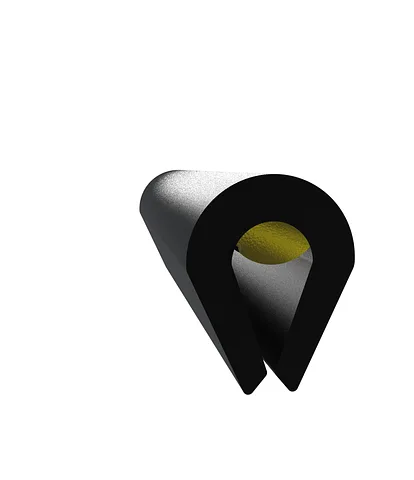

  7. 80170 Compare Cross-section of 80170
    80170 80170 0.240" W × 0.187" H PVC · Edge Trim

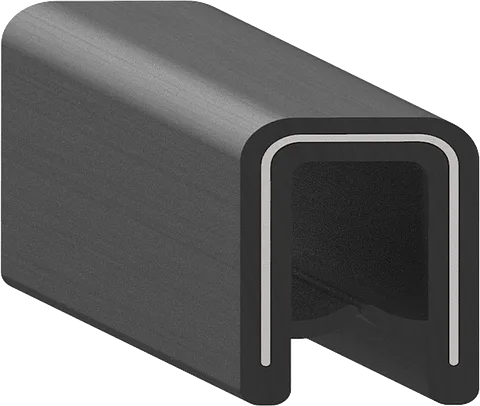

  8. BD-1185 Compare Cross-section of BD-1185
    BD-1185 BD-1185 0.350" W × 0.525" H PVC · Edge Trim

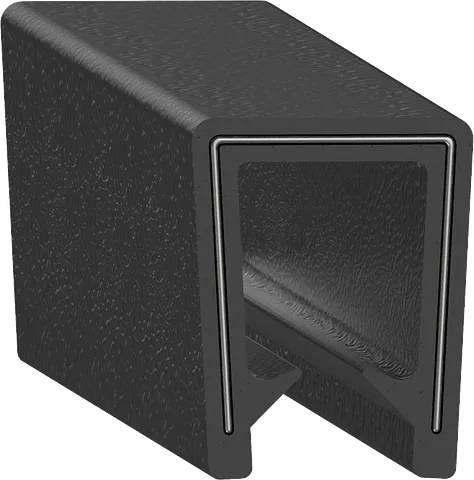

  9. BD-1435 Compare Cross-section of BD-1435
    BD-1435 BD-1435 0.350" W × 0.660" H PVC · Edge Trim

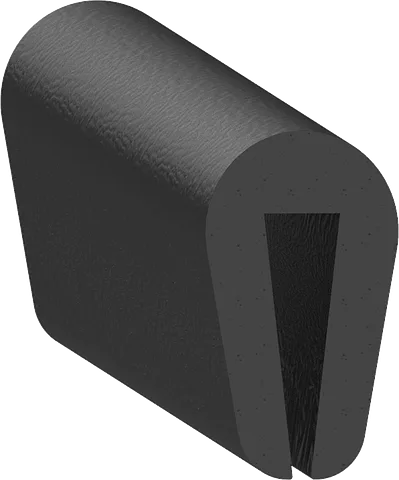

  10. BD-149 Compare Cross-section of BD-149
    BD-149 BD-149 0.330" W × 0.570" H Rubber · Edge Trim

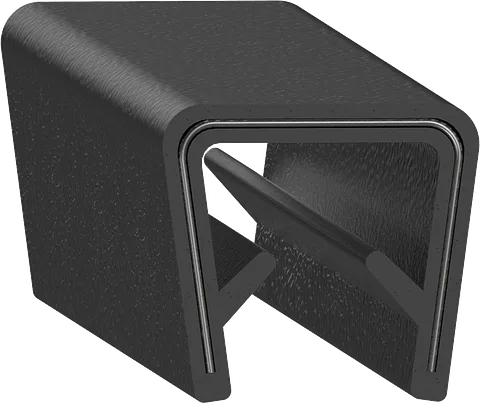

  11. BD-1550 Compare Cross-section of BD-1550
    BD-1550 BD-1550 0.710" W × 0.620" H PVC · Edge Trim

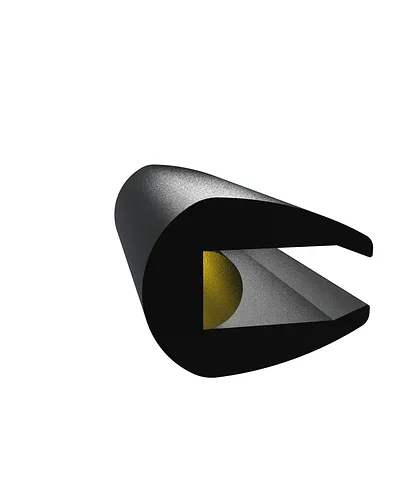

  12. C1003 Compare Cross-section of C1003
    C1003 C1003 0.375" W × 1.000" H PVC · Edge Trim
  13. DD-007 Compare Cross-section of DD-007
    DD-007 DD-007 0.737" W × 0.291" H Rubber · Flap Seal

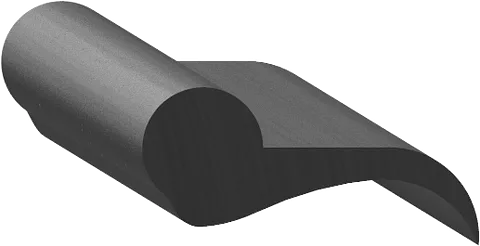

  14. DD-021 Compare Cross-section of DD-021
    DD-021 DD-021 0.417" W × 0.173" H PVC · Edge Trim

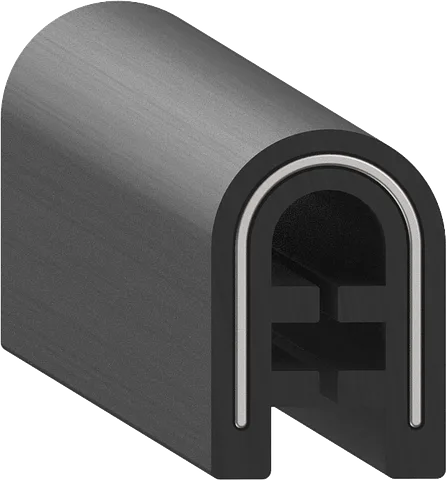

  15. ED-5361 Compare Cross-section of ED-5361
    ED-5361 ED-5361 0.370" W × 0.570" H Rubber · Edge Trim

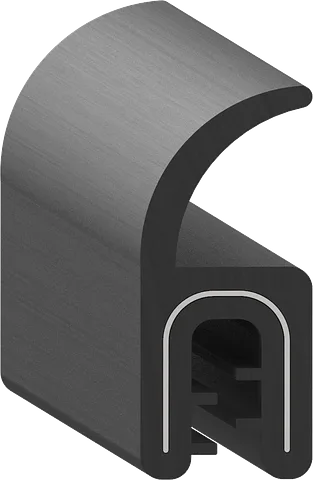

  16. ED-5363 Compare Cross-section of ED-5363
    ED-5363 ED-5363 0.430" W × 0.980" H Rubber · Edge Trim

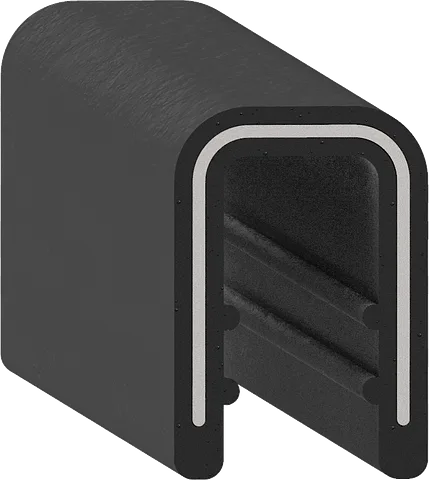

  17. ED-5372-G Compare Cross-section of ED-5372-G
    ED-5372-G ED-5372-G 0.512" W × 0.750" H Silicone · Edge Trim
  18. ET-031 Compare Cross-section of ET-031
    ET-031 ET-031 0.236" W × 0.236" H Rubber · Edge Trim

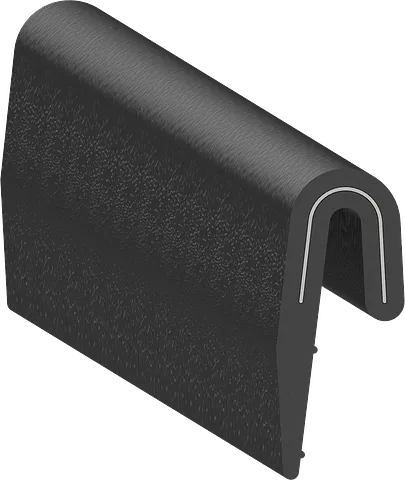

  19. ET-053 Compare Cross-section of ET-053
    ET-053 ET-053 0.488" W × 1.180" H PVC · Edge Trim

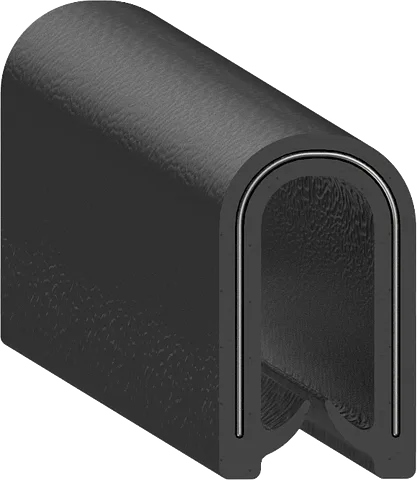

  20. ET-054 Compare Cross-section of ET-054
    ET-054 ET-054 0.315" W × 0.551" H PVC · Edge Trim

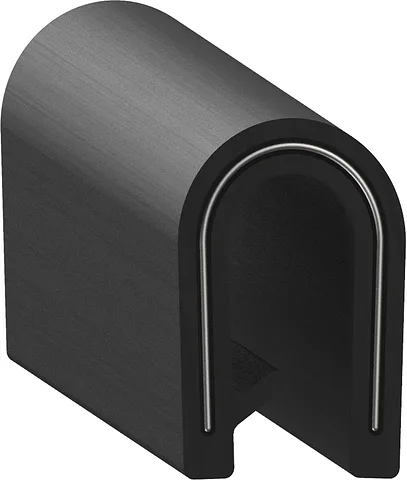

  21. ET-076 Compare Cross-section of ET-076
    ET-076 ET-076 0.446" W × 0.650" H Rubber · Edge Trim

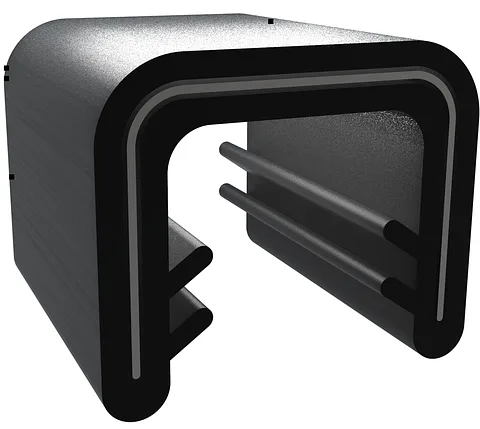

  22. ET-080 Compare Cross-section of ET-080
    ET-080 ET-080 0.732" W × 0.618" H Rubber · Edge Trim

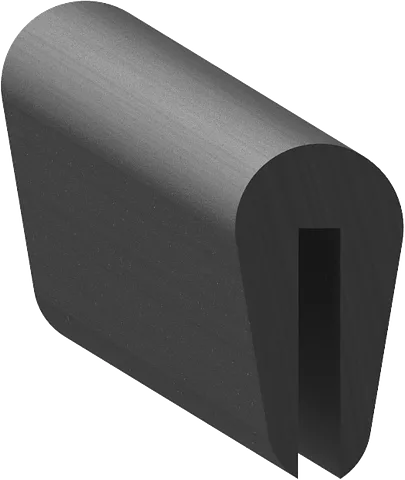

  23. RE-055 Compare Cross-section of RE-055
    RE-055 RE-055 0.250" W × 0.500" H Neoprene · Other Extrusion
  24. RE-092 Compare Cross-section of RE-092
    RE-092 RE-092 0.315" W × 0.827" H Rubber · Edge Trim
  25. RE-092-Gray Compare Cross-section of RE-092-Gray
    RE-092-Gray RE-092 Gray 0.315" W × 0.827" H Rubber · Edge Trim

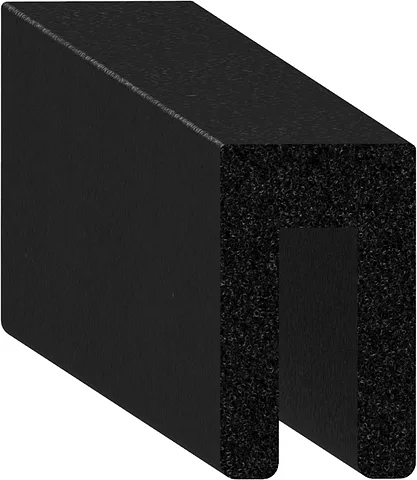

  26. RE-105 Compare Cross-section of RE-105
    RE-105 RE-105 0.313" W × 0.500" H Rubber · Edge Trim

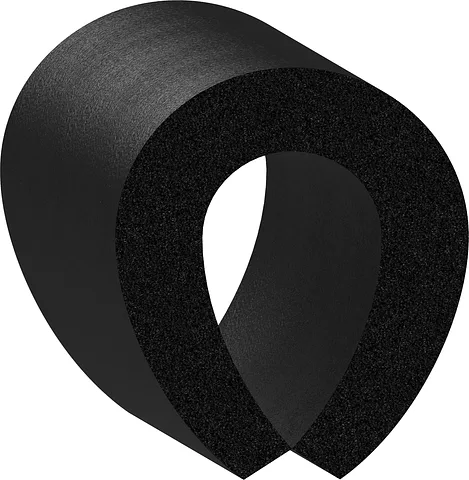

  27. RE-147 Compare Cross-section of RE-147
    RE-147 RE-147 1.075" W × 1.300" H Rubber · Edge Trim

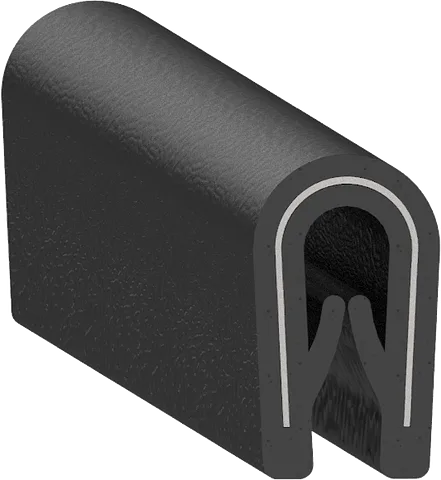

  28. SD-1130 Compare Cross-section of SD-1130
    SD-1130 SD-1130 0.260" W × 0.450" H PVC · Edge Trim

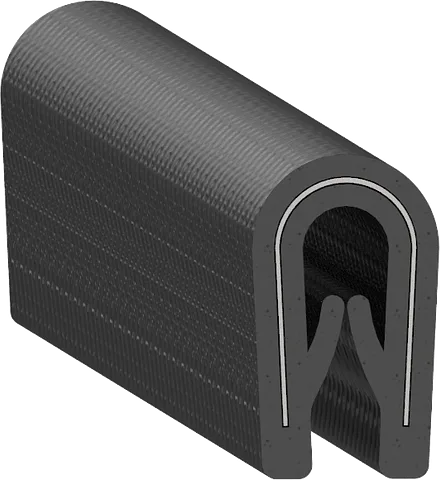

  29. SD-1130-Herringbone Compare Cross-section of SD-1130-Herringbone
    SD-1130-Herringbone SD-1130 Herringbone 0.260" W × 0.450" H PVC · Edge Trim

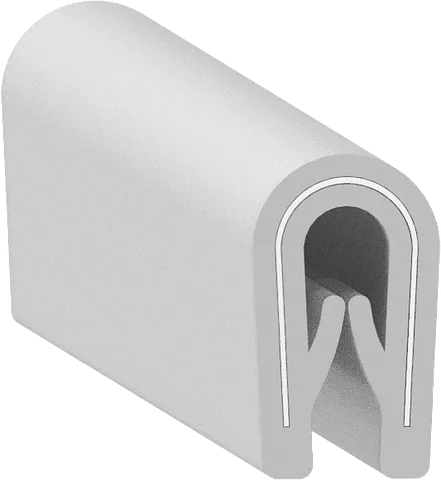

  30. SD-1130-W Compare Cross-section of SD-1130-W
    SD-1130-W SD-1130-W 0.260" W × 0.450" H PVC · Edge Trim
