Find your trim Get a quote

Trim Seals

36 profiles matching · every one drawn and dimensioned

Trim seals are a combination of our PVC edge trims and typically a sponge rubber bulb which are glued together to create attractive bulb seal.

36 results · CSV
Featured Part number Width Height
Cards Table
Trim Seals Remove filter Reset all
  1. GFX-B Compare Cross-section of GFX-B
    GFX-B GFX-B 1.102" W × 0.289" H TPV · Trim Seal
  2. GP1-0022 Compare Cross-section of GP1-0022
    GP1-0022 GP1-0022 0.089" W × 0.204" H TPE · Trim Seal
  3. GP1-0025 Compare Cross-section of GP1-0025
    GP1-0025 GP1-0025 0.030" W × 0.292" H TPE · Trim Seal
  4. P141 Compare Cross-section of P141
    P141 P141 0.225" W × 0.110" H PVC · Trim Seal
  5. PE-010 Compare Cross-section of PE-010
    PE-010 PE-010 0.346" W × —" H PVC · Trim Seal
  6. PTL-124 Compare Cross-section of PTL-124
    PTL-124 PTL-124 1.045" W × 0.750" H PVC · Trim Seal
  7. PTL-125 Compare Cross-section of PTL-125
    PTL-125 PTL-125 1.805" W × 0.650" H PVC · Trim Seal
  8. SD-108-T Compare Cross-section of SD-108-T
    SD-108-T SD-108-T 0.400" W × 0.996" H PVC · Trim Seal
  9. SD-108-T-130-Opening Compare Cross-section of SD-108-T-130-Opening
    SD-108-T-130-Opening SD-108-T .130 Opening 0.400" W × 0.996" H PVC · Trim Seal

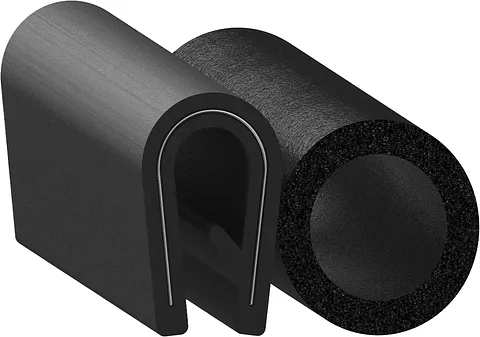

  10. SD-110 Compare Cross-section of SD-110
    SD-110 SD-110 0.790" W × 0.550" H PVC · Trim Seal
  11. SD-110-Dense Compare Cross-section of SD-110-Dense
    SD-110-Dense SD-110 Dense 0.720" W × 0.582" H PVC · Trim Seal
  12. SD-110-T Compare Cross-section of SD-110-T
    SD-110-T SD-110-T 0.500" W × 1.040" H PVC · Trim Seal
  13. SD-110-T-AL-1875-IN-Opening Compare Cross-section of SD-110-T-AL-1875-IN-Opening
    SD-110-T-AL-1875-IN-Opening SD-110-T-AL-.1875 IN Opening 0.500" W × 1.040" H Rubber · Bulb Seal
  14. SD-110-T-W Compare Cross-section of SD-110-T-W
    SD-110-T-W SD-110-T-W 0.500" W × 1.040" H PVC · Trim Seal
  15. SD-111 Compare Cross-section of SD-111
    SD-111 SD-111 w/ .060 Opening 1.250" W × 0.500" H PVC · Trim Seal
  16. SD-1205-437in-Side-Bulb Compare Cross-section of SD-1205-437in-Side-Bulb
    SD-1205-437in-Side-Bulb SD-1205 w/ .437in Side Bulb 0.727" W × 0.550" H PVC · Trim Seal
  17. SD-1205-437in-Top-Bulb Compare Cross-section of SD-1205-437in-Top-Bulb
    SD-1205-437in-Top-Bulb SD-1205 w/ 0.437in Top Bulb 0.437" W × 0.987" H PVC · Trim Seal
  18. SD-1205-AL-0625in-375in-Top-Bulb Compare Cross-section of SD-1205-AL-0625in-375in-Top-Bulb
    SD-1205-AL-0625in-375in-Top-Bulb SD-1205-AL-1/16in-3/8in Top Bulb 0.375" W × 0.925" H PVC · Trim Seal
  19. SD-1205-AL-0625in-625in-Top-Bulb Compare Cross-section of SD-1205-AL-0625in-625in-Top-Bulb
    SD-1205-AL-0625in-625in-Top-Bulb SD-1205-AL-1/16in-5/8in Top Bulb 0.625" W × 1.175" H PVC · Trim Seal
  20. SD-1205-AL-1875in-437in-Top-Bulb Compare Cross-section of SD-1205-AL-1875in-437in-Top-Bulb
    SD-1205-AL-1875in-437in-Top-Bulb SD-1205-AL-3/16in-7/16in Top Bulb 0.438" W × 0.988" H PVC · Trim Seal
  21. SD-1205-AL-1875in-625in-Top-Bulb Compare Cross-section of SD-1205-AL-1875in-625in-Top-Bulb
    SD-1205-AL-1875in-625in-Top-Bulb SD-1205-AL-3/16in-5/8in Top Bulb 0.625" W × 1.175" H PVC · Trim Seal
  22. SD-1205-T-W-1in-Bulb Compare Cross-section of SD-1205-T-W-1in-Bulb
    SD-1205-T-W-1in-Bulb SD-1205 T w/ 1in Bulb 0.550" W × 1.000" H PVC · Trim Seal
  23. SD-120-AA Compare Cross-section of SD-120-AA
    SD-120-AA SD-120-AA 0.950" W × 0.550" H PVC · Trim Seal
  24. SD-120-AA-T Compare Cross-section of SD-120-AA-T
    SD-120-AA-T SD-120-AA-T 0.625" W × 1.156" H PVC · Trim Seal
  25. SD-120-AAT-Offset Compare Cross-section of SD-120-AAT-Offset
    SD-120-AAT-Offset SD-120-AAT-Offset 0.650" W × 1.156" H Rubber · Bulb Seal
  26. SD-122-AA-T Compare Cross-section of SD-122-AA-T
    SD-122-AA-T SD-122-AA-T 0.650" W × 1.180" H PVC · Trim Seal
  27. SD-124 Compare Cross-section of SD-124
    SD-124 SD-124 1.140" W × 0.550" H PVC · Trim Seal
  28. SD-127 Compare Cross-section of SD-127
    SD-127 SD-127 1.125" W × 0.850" H Rubber · Bulb Seal

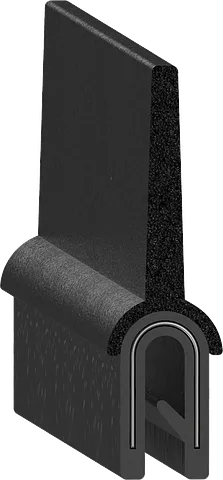

  29. SD-130 Compare Cross-section of SD-130
    SD-130 SD-130 0.379" W × 1.350" H PVC · Trim Seal
  30. SD-1400-AL-1in-Bulb Compare Cross-section of SD-1400-AL-1in-Bulb
    SD-1400-AL-1in-Bulb SD-1400-AL w/ 1in Bulb 1.330" W × 1.000" H PVC · Trim Seal
Talk to Cowles

Don't see the profile?
Describe the gap.

Tell us the width, the height and what it seals — a real person answers, with part numbers.

Talk to an engineer For resellers
